Exhaust Gas Bypass System

- Description

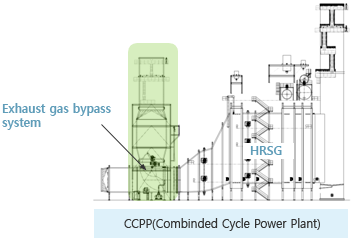

Exhaust gas bypass system changes the gas flow direction from HRSG to bypass stack. The location is between "Gas turbine outlet" and "HRSG inlet".

Exhaust gas bypass system enable the gas turbine to operate continuously by turning the gas flow direction to bypass stack (CCSC) when the emergency is happened or the HRSG is necessary to maintenance.
